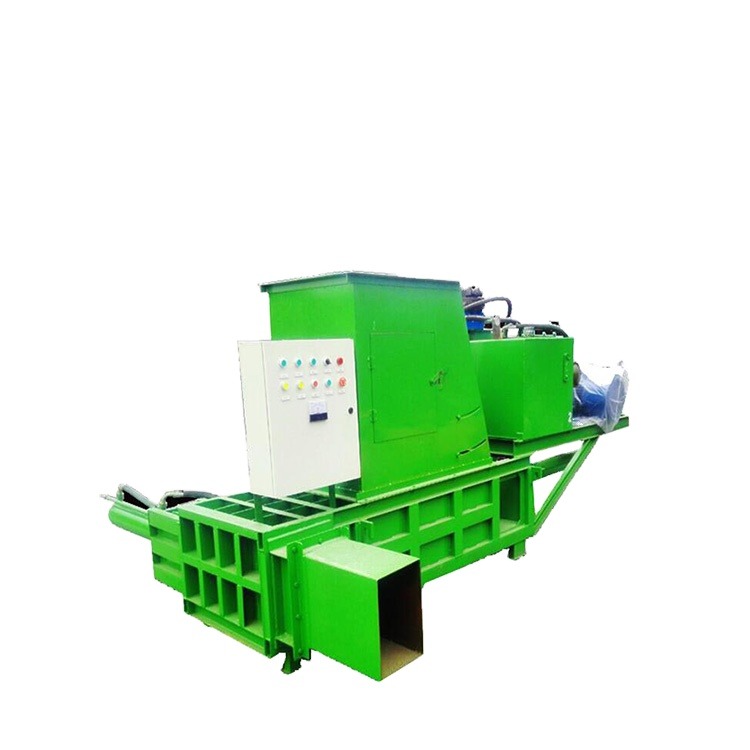

Silage bundler is the machine that smash the maize straw compression, bundling, packing machine, widely used in animal husbandry forage grass investment, dry storage. Can save storage space, extend the green straw feeding time.It works with the chaff cutter or straw chopper together, finally can directly pack into the woven plastic bag accordingly.
| No. | Model | YK-70 |
| 1 | Motor(KW) | 15 |
| 2 | hydraulic pump displacement L/Min | 63 |
| 3 | Oil cycle nominal pressure(pa) | 18 |
| 4 | Production Efficiency(kg/h) | 3000-4000 |
| 5 | Baler Size(mm) | 300*400*700 |
| 6 | Baling ability(bag/h) | 80-120 |
| 7 | Product Density(kg/m3) | 800-1100 |
| 8 | Total Weight(kg) | 2100 |
| 9 | Machine Dimensions(mm) | 3400*2600*1600 |
| 10 | Baling piston speed (distance/min) | 3.7-4 |
Product details pictures:
Main Features:
1.Compact structure, simple operation,flexible etc
2.Reduce the storage costs, the labor intensity of workers.
3.Bring the real economic benefits of animal husbandry.
Project Case:
Product Description :
Horizontal hydraulic baling machine is used for packing materials .Such as wool,waste paper,crop stalks,rice straw,plastic,cotton,etc,for easy storage and transportation.Adopting PLC Automatic controller operation system.The system will automaticly ensure the safety of labor and equipment.It is also characteristic of low power consumption ,high output,easy operation etc.
| Model | DB-100 | DB-120 | DB-160 | DB-200 |
| Main nominal thrust (KN) | 1000 | 1200 | 1600 | 2000 |
| Baler Size W*H*L(mm) | 900*1000*adjustable | 900*1100*adjustable | 1100*1300*adjustable | 1100*1300*adjustable |
| Bale density(kg/m3) | 400-450 | 400-450 | 400-450 | 400-450 |
| Voltage | 3PH380V | 3PH380V | 3PH380V | 3PH380V |
| Power(KW) | 22 | 22 | 22+15 | 30+22 |
| Capacity(Ton/hour) | 2-5(3-5bag) | 5-8(5-10bag) | 8-12(8-10bag) | 10-15(10-12bag) |
| Bale line | 3 | 4 | 4 | 5 |
| Feed opening sizeL*W(mm) | 1500*820 | 1685*860 | 1880*1060 | 1960*1145 |
| Weight(KG) | 18000 | 23000 | 25000 | 35000 |
| Machine size | 8660*12000*4120 | 8700*12200*4120 | 8700*12200*4120 | 10200*16200*5370 |
| Automatic Grade | Semi-automatic | Automatic | Automatic | Automatic |
Product details pictures:
Main Features of horizontal baling machine:
1.The host frame system: More high quality steel gas shielded welding casting solid framework, advanced mechanical design makes equipment durability.
2. Conveying system:High quality thickening flange beam frame, high strength steel plate type transmission belt.
3. Hydraulic System : Hydraulic pump, solenoid valve, key parts adopt imported components and hydraulic cylinder oil seal, packing pressure, fast, durable, low noise.
4.Electric control system: Using Siemens motor, original mitsubishi PLC programming controller.Other buttons, sensors, infrared correlation, such as remote control system for the key parts adopt imported components, key operation simple and convenient maintenance.
5.Security alarm system:Program control five safety automatic lock down alarm. In the equipment misuse, lack of power supply, power phase sequence error, high pressure, people stray into the mouth when the automatic shutdown alarm.
Project cases:
Package & Shipping
FAQ:
1. Payment accepted: After confirming all the details with our sales, we will make contract for you to make deposit first and the balance need to be cleared against shipping. Generally we accept most of the payment methods like TT, L/C, PayPal, West union.
2. Lead time: 7 working days against your deposit.
3. What about the quality: We use the best national certified steel and top brand e-parts
4. Warranty: 12 months warranty and life time service.
5. Certificate: ISO, CE, CCC
6. How can I get to your company: We are located in Gongyi City. You can fly to XINZHENG INTERNATIONAL AIRPORT and we will pick you up there.
About CANMAX:
We are a professional manufacturer of various machines for 14 years. Our main products includes Block making machine, concrete mixer, dry mortar mixer, charcoal machine, Coal briquette machine, Oil press machine, Biomass briquette machine, food machinery, etc.
With 6 years exporting experience, we are now the leading supplier in middle China now, our products has been exported to more than 55 countries in the world.
