제품 사양

Type: continuous waste tyre/plastic pyrolysis plant

Condition: New

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2021

Warranty of core components: 1 Year

Core Components: PLC

Tire Machine Type: Tire Recycling Machine

Voltage: 220V/380V

Dimension(L*W*H): 30*20*7m

Year: NEW

Warranty: 1 Year

Key Selling Points: Automatic

Power (kW): 28 kW

Weight (KG): 30000 KG

Applicable Industries: Manufacturing Plant

Showroom Location: Nigeria

Function: recycle the waste tire/rubber in pyrolysis plant to make oil

Oil rate: 45-52% for tires and 40-95% for plastics

Fuel: coal, fuel oil, wood, gas etc

Raw material: Waste tyre,waste plastic,waste rubber

Material of Reactor: standard Q245R boiler steel

Outputs: fuel oil, carbon black, steel wire

Accessory equipments: auto-feeder, tire cutting machine, carbon black pellet machine etc

Safty standard: strictly according to the standard of pressure vessel(boiler grade)

Quality control: raw material test, digital cutting, auto-welding, X-ray detection

Name: Fully continuous waste tire tyre pyrolysis plant

기본 정보

결제 및 배송 조건

Packaging Details: Fully continuous waste tire tyre pyrolysis plant: 40HQ wooden package

Supply Ability: 20 Set/Sets per Month Fully continuous waste tire tyre pyrolysis plant

제품 설명

Products Description

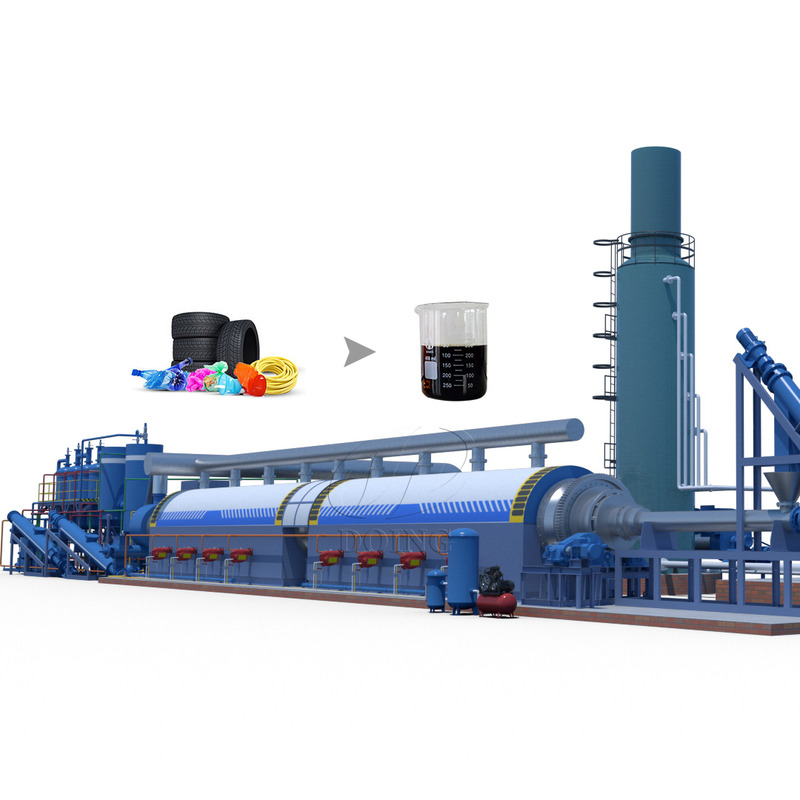

DOING WASTE TYRE PLASTIC PYROLYSIS PANT

DOING pyrolysis plant adopt the latest pyrolysis technology. It can process the waste tyres or plastics with high temperature in a oxygen-free condition. Through the pyrolysis process, you can get fuel oil, carbon black, steel wire and combustible gas from waste tyres, or get fuel oil, carbon black and combustible gas from waste plastic. The whole process is safe and environmentally friendly. Our pyrolysis plant have two types: continuous and batch. For details, please contact our professional project manager for consultation.

Waste Plastic Pyrolysis Plant

Many waste plastics in our lives can use waste plastic pyrolysis plant to obtain fuel oil and carbon black, and most plastics have a higher oil yield than waste tires.

Product Paramenters

Items	Batch Pyrolysis Plant
Equipment type	DY-1-6	DY-1-10	DY-1-12
Raw material	Waste plastics, tyres	Waste plastics, tyres	Waste plastics, tyres
Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
24-hour Capacity	6 ton	10 ton	12 ton
Oil yield	2.7-3.3ton	4.5 -5.5ton	4.8 -6.6ton
Operating pressure	Normal	Normal	Normal
Material of pyrolysis Reactor	Q245R	Q245R	Q245R
Thickness of pyrolysis Reactor	16mm	16mm	16mm
Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
Total power	15KW	15KW	15KW
Mode of cooling	Water cooling	Water cooling	Water cooling
Cooling area of condenser	100sqm	100sqm	100sqm
Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
Noise dB(A)	≤85	≤85	≤85
Size of Reactor(D×L)	2200×6000	2600×6600	2800×6600
Working form	Intermittent operation	Intermittent operation	Intermittent operation
Delivery time	20days	20days	20days
Weight	27T	32T	35T

Item	Continuous Pyrolysis Plant
Model	DY-C-30	DY-C-50	DY-C-100
Cpacity	30T/D	50T/D	100T/D
Power	65Kw	80Kw	120Kw
Working type	Continuous
Reactor deisgn	Mutiple reactors (The quantity and size depends on the raw material condition)
Rotating	Internal rotating
Cooling system	Recycled waster cooling
Reactor material	Q245R/Q345R boiler plate
Heating method	Indireact hot air heating
Heating fuel	Fuel oil/gas
Feedstock	Waste tire/plastic/rubber
Output	Fuel oil, carbon black
