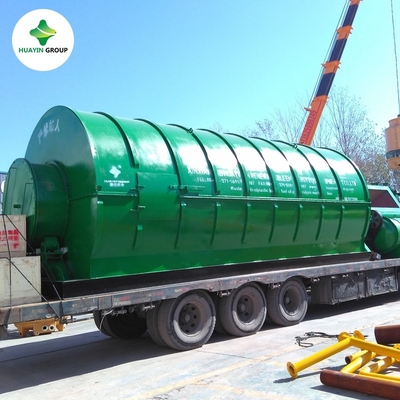

energy & 5 Ton Plastic Oil Pyrolysis Machine Indian Plastic Pyrolysis Plant Gasoline Mining With CE

1.Capacity from 1 ton-15ton capacity per batch.

2.Fast installation design & Bulk type design &Container design

3.Different designs for dedusting system to meet the emission requirements of different countries.

Step 1: Feeding (2 hours). Feed tyres into reactor manually or with auto feeder;

Step 2: Preheating (2-4hours). Tyres gradually melts under high temperature and oil gas comes out;

Step 3: Oil producing peak (8-10 hours). Oil gas goes through the cooling system and is cooled down into liquid fuel oil; some oil gas that cannot be further cooled down into liquid fuel oil under common temperature and common pressure ("syngas") will be recycled to furnace for heating, saving your fuel;

Step 4: Cooling (4 hours). After the oil processing process is completed, leave the plant for cooling.

Step 5: Carbon black discharging (1-2 hours). Use a fully-sealed carbon black discharging system to discharge carbon black.

Step 6: Pulling out steel wire (0.5h).

We will send engineer to your place to provide technical service in guiding: Installation, Test running ,Worker training.

Besides ,Installation preparation manuals will be sent to you so that you can do relevant preparation work before our engineer arrives.

3D drawing, layout drawing and foundation drawing may be provided based on your land size and other specific requirements.

Xinxiang Huayin Renewable Energy Equipment Co., Ltd is located in Xinxiang City, Henan Province, which is specialized in manufacturing waste tires/plastics to fuel oil pyrolysis machine and waste oil to diesel distillation machine since 1993. we have We have more than 2000 square meters running demo plant for customers' visitation and learning. our plants have been exported to over 70 countries around the world .

Q1.The plastic and tyre can be process in one batch?

A. We don't recommend you mixed them together to process , because this will influnce the oil quality.

Q2. What kind of fuel oil does the pyrolysis machine produce ? does it can be used for diesel engins ?

It is a kind of heavy fuel oil , furnace oil , it can be used for burning as heating fuel , and widely used in industrial, like coal factory , cement factory , steel factory , power generator etc.

If you want to use the oil for diesel engines like trucks , tractors , ships , then you need further process the pyrolysis oil by distillation plant.

Q3. How long can be ready for sending to us?

A3. When we receive our payment or L/C at sight,we can deliver the machine to you with 25 days,if you have shipping agent,you should let us know advanced,so we can contact with them to prepare the shipping.

Q4. What is the oil yield of waste plastic and waste tires?

A4: Different plastic waste have different oil yield rate. Most of our customers use scraps off cut from recycled paper plant. Approx oil yield rate of different raw material

PE/ldpe/pe 50%-75%

PP 50%-75%

PS 50%-75%

ABS 40%

Leftovers of paper Wet 15-20%, dry 60%

House garbage 35-50%

Plastic cable 80%

Plastic bag 50%

Submarine cable 75%

Rubber cable 35%

Sole 35%

PVC NA

PET NA
