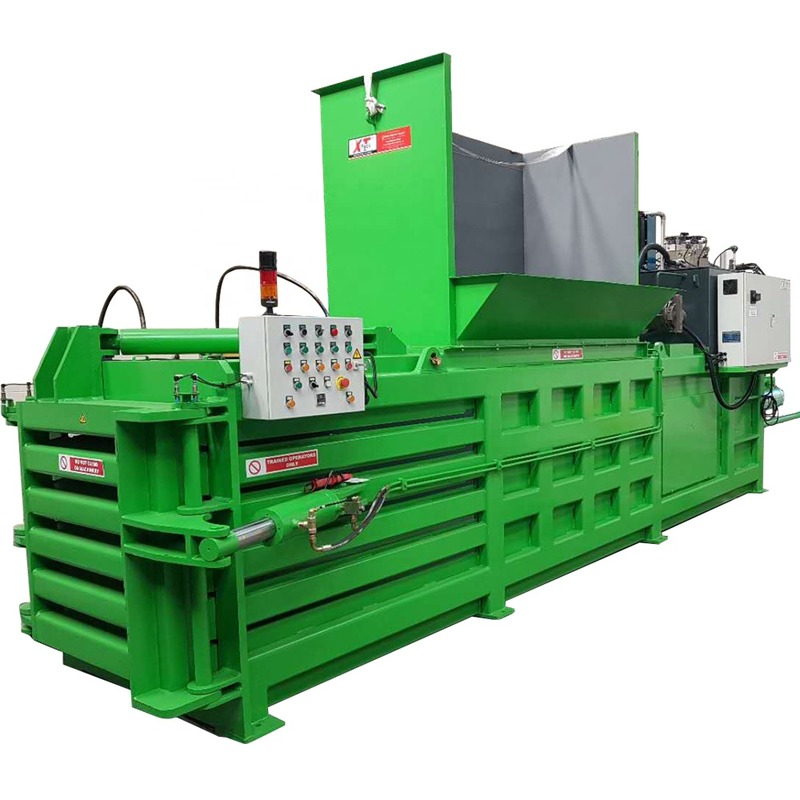

Competitive price large semi-automatic balers horizontal plastic bottle baler
|
Model |
XTY-300WB7070 |
XTY-400WB7280 |
|
Main Cylinder Size |
30tons |
40tons |
|
Main Motor Power |
11kw |
11kw |
|
Cooling System |
N/A |
air cooler/water cooler |
|
Cycle Time (unload) |
27s |
19s |
|
Oil Reservoir |
240L |
240L |
|
Number of Belting |
3lines |
4lines |
|
Wire Size |
Ø2.4-2.7 |
Ø2.4-2.7 |
|
Feed Opening Size (L*W) |
700*690mm |
1000*700mm |
|
Chamber Size (L*W*H) |
1700*690*690mm |
2200*700*780mm |
|
Bale Size (L*W*H, L can be adjustable) |
900*700*700mm |
1000*720*800mm |
|
Bale Density (OCC) |
400-500kgs/m3 |
400-500kgs/m3 |
|
Throughput (30-60kgs/m3) |
0.5-1ton/h |
0.5-1ton/h |
|
Machine Weight |
4tons |
4tons |
|
Machine Overall Dimension |
4200*1100*1900mm |
5500*1100*2000mm |
|
Feeding Device |
cyclone / beltconveyor |
cyclone /beltconveyor |
|
Feeding Width |
600mm |
1000mm |
|
Speed |
12m/min |
12m/min |
|
Power |
2.2kw |
5.5kw |
|
Weight |
1tons |
1.2tons |
|
Overall Dimension |
4500*800*2000mm |
5000*1200*2500mm |
