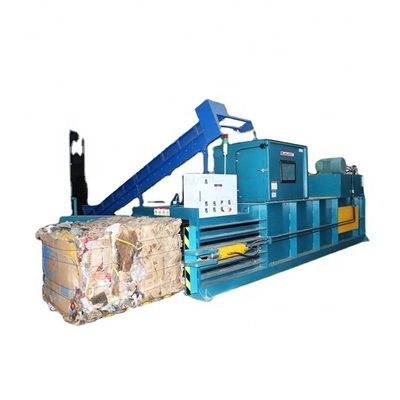

*Horizontal semi-automatic hydraulic baler with side-opening door.
*PLC controlled system, automatic feeding detection and compressing, or complete manually.
*Featured by manual strapping, one-off bale out, hydraulically locking at both left and right sides, safe and convenient.
*Feeding through conveyor, air blower or manually.
*Applicable for solid waste industries, including wastepaper, carton, plastic, fiber, etc.
Customer case:
Model | JPW40BC | JPW60BC | JPW80BC | JPW100BC | |||
Hydraulic power | 40Ton | 60Ton | 80Ton | 100Ton | |||
Bale size (L*W*H) | 720*720*300-100mm | 1000*750*300-1000mm | 1100*800*300-1000mm | 1100*1100*300-1100mm | |||
Feed opening size (L*W) | 1000*720mm | 1200*1000mm | 1350*1100mm | 1500*1100mm | |||
Bale lines | 4 | 4 | 5 | 5 | |||
Out-bale manner | One-off bale out | ||||||
Bale weight | 250-350Kg/bale | 350-500Kg/bale | 500-600Kg/bale | 600-800Kg/bale | |||
Voltage (customizable) | 200-480/3Phase | ||||||
Power | 15KW/20HP | 18.5KW/25HP | 22KW/30HP | 30KW/40HP | |||
Machine size (L*W*H) | 4350*1080*1870mm | 4450*1100*2180mm | 5600*1530*2100mm | 6100*1650*2200mm | |||
Our machine been made details in factory :
Factory inside:
Our machine been made details in shipment delivery:
Our office, team:
Certificates
Our Service
-Service phone line keep 24 hours unblocked
-All emails will get response within 10 hours
-Any needed machine parts can be supplied with professional guiding and ordinary.
-Collect after-sale-service feedback from customer, keep improving.
FAQ
1,Can we customized the bale size or bale weight?
---Of course you can,we can customized the machine according to your request,and give you our professional suggestion.
2, What about the warranty?
---This machine is guaranteed for 12 months. Within the guarantee period, any quality fault of the commodity caused by non-artificial reason , we provide free components for replacement. Wear parts are exclusive from this warranty. We also provide technical support for the whole lifespan of the machine.
