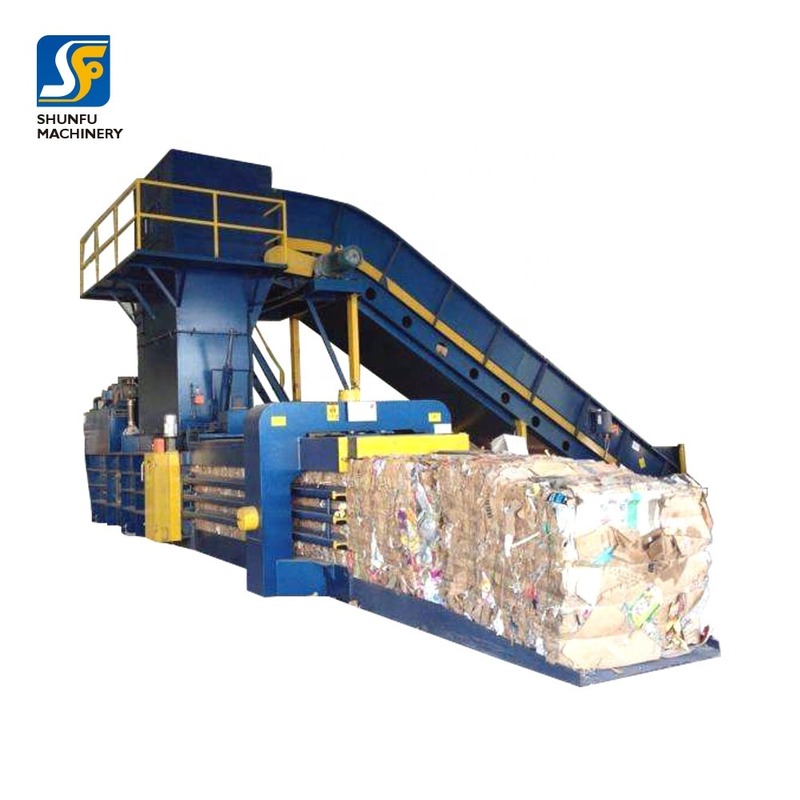

carton bailing machine baler paper press cardboard hydraulic pressure baler machine
---BALER MACHINE BRIFE---
---BALER MACHINE FUNCTION---
---BALER MACHINE CONFIGURATION---
carton bailing machine baler paper press cardboard hydraulic pressure baler machine Configuration | ||||||
Model | SF-200 | SF-180 | SF-160 | SF-160 | SF-120 | SF-120 |
Nominal Push Force(kn) | 2000kn | 1800kn | 1600kn | 1200kn | ||
Motor | 30kw+18.5kw Hydraulic pump | 22kw+15kw Hydraulic pump | 22kw+15kw Hydraulic pump | 22kw | ||
Compressed Room Size(L*W)mm | 2800*1200 | 2500*1100 | 2000*1100 | 1900*900 | ||
The compressed room size can be customized | ||||||
Bales Size (L*W*H)mm | 1700*1100 *1300 | 1700*1100 *1300 | 1500*1100*1300 | 1700*1100*1300 | 1500*900*1100 | 1700*900 *1100 |
The length can be adjusted | ||||||
Bales Density | More than 400-450kg/m3 | |||||
Production Efficiency | 8-11 bales/hour | |||||
Power system | Hydraulic system with high & low pressure combination | |||||
System operating parameters | Mode:YCY14-1BPVR140-17 | |||||
Rated displacement:230ml/r ;preset pressure:31.5MPa | ||||||
System pressure | 28MPa | |||||
Power Specifications | 3PH 380V | |||||
Control System | PLC ,Special detection, automatic control, manual button operation | |||||
Hydraulic oil grade | 46# Harding-wearing hydraulic oil brand |
---BALER MACHINE FEATURE---
1.The hydraulic pressure baler machine uses PLC control,can adjust the length of bale size.
2.The cardboard baler machine ,The left,right,upper,directions use folat type shrink mounth design,is it good to separate fully automatic.This baler can press many different kinds materials.
3.The paper press baler machine ,between pressure cylinder and press head adopts spherical structure connections,has good reliability.The sealing elements will have long service life.
---BALER MACHINE REAL SHOW---
Shunfu company machines sold throughout the country over 20 provinces and areas, and exported to Vietnam, Burma,Uzbekistan,Russia ,Kyrgyzstan, Nigeria, Ukraine, Botswana, Libya, Algeria, El Salvador , Lebanon, Moldova, Bolivia, Egypt, South Africa and other countries.The trust and praise by the user for waste paper baler machine and other paper machine.Every year,the customers amout of coming our factory is more than 300,and most of all orders amout is 50 containers one month.
Packing Materials:Wrap film packaging or wooden case
Packaging Details:
1)All the wear out spare parts is packed with plastic films and wooden boxes.
2) The machines are fastened by wire cables.
3)FCL: Shipping by a standard exporting container.
We not only do bailing machine baler carton baler machine paper press baler machine cardboard baler machine hydraulic pressure baler machine,but also do the toilet machine,cardboard machine,paper core machine,egg tray machine.
