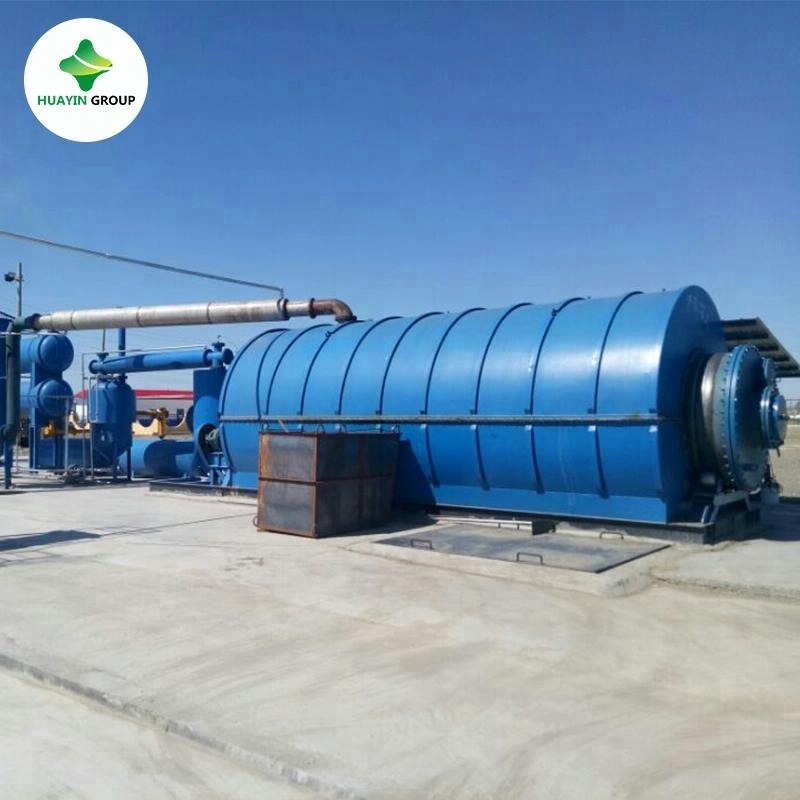

Diesel Pyrolysis Continuous Plant German Waste Tire Plastics Integrating Fractional Distillation Machine

1.0 Sets
MOQ
Diesel Pyrolysis Continuous Plant German Waste Tire Plastics Integrating Fractional Distillation Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Type: waste tire pyrolysis plant
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: pyrolysis reactor
Tire Machine Type: Tire Recycling Machine
Voltage: 380V
Dimension(L*W*H): 12000*1700*1700MM
Year: 2021
Warranty: 1 Year
Key Selling Points: High Safety Level
Power (kW): 20 kW
Weight (KG): 25000 KG
Applicable Industries: waste pyrolysis
Showroom Location: None
Raw material: Q345R Boiler Plate
Name: pyrolysis plant garbadge
Application: Continuous Tyre Pyrolysis Plant
Capacity: 25~30T per day
Function: continous small scale plastic pyrolysis machine
Output: 45%-55% Oil
Final product: Oil,carbon black
Color: Customizable
Usage: Used Tire Recyling
Advantage: Automatic,continuous,safety,no pollution
기본 정보
결제 및 배송 조건
Packaging Details: plastic films for pyrolysis reactor , wooden boxes for small parts
Supply Ability: 200 Set/Sets per Year
제품 설명
Product Description

Product Application

Pyrolysis machine is designed for recycling waste tire/plastic/rubber into fuel oil to replace landfill or incineration which causes serious environmental pollution. The main output product is fuel oil that finds good market in industrial field.

HUAYIN waste pyrolysis plant Specification
Item
Contents
Model
HY2200mm*5500mm
5 Ton/Batch
HY2200*7500
7 Ton/Batch
HY2600*6600
8 Ton/Batch
HY2800*6000
9 Ton/Batch
HY2800*6600
10 Ton/Batch
Capacity
From 10kg to 30ton per day
Reactor materail
Q345R/Q245R/310S+Boiler plate/Stainless steel
Thickness
14mm/16mm/18mm
Weight
15T-35T
Power
Average 15KW/h
Labor needed
3-4 workers
Space needed
300-400 square meters (Width:10m, Length:30m-40m)

Input raw material

The input raw material can be waste plastic , tires , rubber , pmma etc.
Output product

PROCESS DESCRIPTION

Operation Process
Step 1: Feeding (2 hours). Feed tyres into reactor manually or with auto feeder;
Step 2: Preheating (2-4hours). Tyres gradually melts under high temperature and oil gas comes out;
Step 3: Oil producing peak (8-10 hours). Oil gas goes through the cooling system and is cooled down into liquid fuel oil; some oil gas that cannot be further cooled down into liquid fuel oil under common temperature and common pressure ("syngas") will be recycled to furnace for heating, saving your fuel;
Step 4: Cooling (4 hours). After the oil processing process is completed, leave the plant for cooling.
Step 5: Carbon black discharging (1-2 hours). Use a fully-sealed carbon black discharging system to discharge carbon black.
Step 6: Pulling out steel wire (0.5h).

Certifications
Detailed Images

Main Features

Name: Continuous waste tire pyrolysis machine
Brand: Huayin
Original: China
Domestic famous engines, low fuel consumption, high economic benefits,safety 100% and pollution free,continuously and automatic

Machine Parts

Name: Carbon black discharge system
Brand: Huayin
Original: China

Support PLC system ,warning, alarm and auto-correction function, ensure operation under safety condition.
8) Low requirement for manpower, Low working intensity and clean production.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Profile
Packing & Delivery
Packaging
Size
12000 (L) * 1700 (W) * 1700(D)
Weight
45 tons



Packaging Details
The normal package is 8*40'HQ containers.If need the foundation,there will need flat rack container.
