| By-Products | Application |
|
Fuel Oil (45%-55%) |
1. Used as the heating material and sell it to cement factory, glass factory, ceramic factory, electric power factory, steel making factory, boiler factory, etc. |
|
Carbon Black (30%-35%) |
1. Make it to pellet or briquette as heating material. |
|
Steel Wire (10%-15%) |
1. Sell to iron and steel factory directly. |
|
Flammable Gas (8%-10%) |
1. Recycled into furnace to heat reactor instead of coal/wood/oil/natural gas. |

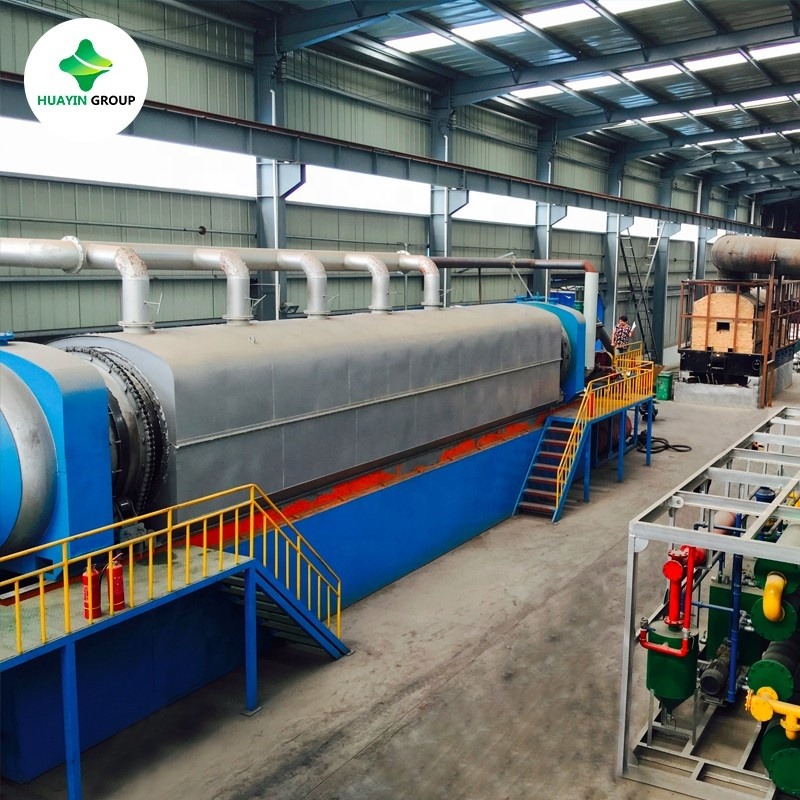

1. Continuous waste plastic pyrolysis plant ant is equipped with automatic feeding and discharging system, which can realize feeding materials on one side and discharging slag continuously from the other side. Besides, it not only can dispose 10-30 tons waste tyres/plastic per day but also can work continuously for 24 hours without a stop.
2. The continuous waste plastic pyrolysis plant can work continuously, so it is efficient, and because of its high degree of automation, it can discharge automatically, so it can save the labor cost. And the supporting facilities can handle the waste gas, slug and water, thus the plant is environemntal-protecting.
3. The continuous waste tyre pyrolysis plant can handle many kinds of waste, such as waste plastic, waste tyres, waste rubber, oil sludge and so on.
Technical Parameter
| Item | Contents | |
| Input-Raw Materials | Waste tire/rubber/Medical waste/MSW | |
| By-products | Fuel oil, carbon black, steel wire, syngas | |
| Model | Reactor size | Capacity |
| HY2200*5500 | 5 Ton/Batch | |
| HY2200*7500 | 7 Ton/Batch | |
| HY2600*6600 | 8 Ton/Batch | |
| HY2800*6000 | 9 Ton/Batch | |
| HY2800*6600 | 10 Ton/Batch | |
| Reactor material | Q345R/Q245R/310S+Boiler plate/Stainless steel | |
| Thickness | 14mm/16mm/18mm | |
| Weight | 15T-35T | |
| Power | Average 15KW/h | |
| Space needed | 300-400 square meters (Width:10m, Length:30m-40m) | |
| Labor needed | 3-4 workers | |
| Density of oil | 0.89g/cm3 | |
| Combustion value | 44.30KJ/KG | |
| Note: | We supply customized mini plant: 10kg plant, 1ton plant for customer trial operation. | |
Our Advantage
1.Fully automatic with low labour cost
Our continuous waste plastic pyrolysis plant is controled by PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC or computer is ok.
2.Fully pyrolysis for high oil output
Our continuous waste plastic pyrolysis plant adopts mutiple reactor design which can make fully pyrolysis of waste tires, thus to get high oil output.
3.Big capacity
Also due to continuous feeding and discharge system, and unique mutiple reactor design, our fully automatic continuous waste tyre pyrolysis plant can process at least 10 tons waste tires per day, up to 100T/D.
4.Internal rotating for conitnuous operation
For external rotating system, you have to change the sealing material every three days, thus cannot achieve the real sense of continuous process. But our continuous waste tyre pyrolysis reactor adopts internal rotating method, which no need to worry about the sealing of the external rotating system.
5.Continuous working save time and energy
6.Long working life
The reactor is made of speical steel plate , During the continuous pyrolysis process, reactor heating is by indirect hot air heating, which will not damage reactor so much, thus to keep long usage life of the reactors. And since the hard steel wire already removed from waste tires before pyrolysis processs, thus no damage for the reactor.
1.Huayin’s plants enjoy one-year guarantee, after which, we still offer lifelong technical support for your plant.
2.Our After-sales Service Department will pay you regular visits for any feedback, opinions or suggestions. For any question, just call:+86 371-55917087.
3.For any tiny plant problem you cannot solve after one-year guarantee finishes, please feel free to Email or call our salespeople, who will wholeheartedly help you solve your problem.
For problems that cannot be solved via email or phone-call, our engineers may be dispatched to do plant maintenance and debugging (which usually takes as short as one day) until your plant resumes normal operation. Such service shall be paid at your expense after one-year guarantee finishes.
Profitable HUAYIN waste plastic to fuel oil pyrolysis machine with CE
1. Delivery time - It will be 25 working days after received the deposit.
2. Installation and Training- Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your workers.
Xinxiang Huayin Renewable Energy Equipment Co., Ltd is located in Xinxiang City, Henan Province, which is specialized in manufacturing waste tires/plastics to fuel oil pyrolysis machine and waste oil to diesel distillation machine since 1993.
ISO9001, ISO14001 and CE
We have got ISO9001 and ISO14001 Certifications.
And also our products are equipped with CE Certification that we have the rights to export our waste oil recycling machine to European.
We also have got SGS certificate for our pyrolysis oil products you can check the oil quality features from the analysis and chose the right market for the end products.
Visiting US
Customer visit HUAYIN GROUP FOR PYROLYSIS MACHINE AND WASTE OIL DISTILLATION MACHINE
During your visit, you can see the whole process how we manufacture them machine and how we operate the pyrolysis machine and distillation machine.
Our sales manager will show you everything here.
Welcome you visit our factory at any time!
Q1 : IS that possible to be your agent or distributer ?
Yes , of course , we are glad to work with you to develop the market.
Feel free to contact with us to get more information .
We are the OEM manufacturer for pyrolysis and distillation machine , we are developing partners to occupy our market.
Q2. How to ensure the delivery time ?
We have modern high automation production lines , usually it is just take 5 days to finish producing one set machine.
Moreover , we have prepared machines in our workshop , urgent orders can be negotiated .
Q3. What is your payment terms ?
The Payment terms can be EXW , FOB , CIF , CFR , L/C terms etc.
Other terms can be negotiated.
Q4. Do you provide oil samples ? What is the delivery time ?
Yes , OIl samples can be provided . The delivery time shall be 5 working days.
Q5. Do you produce portable size machine ?
Yes , the smallest capacity is 10kg protable size , we can produce it according to customer requirement.
Related products
| Pyrolysis oil distillation machine to diesel | Mobile Mini mobile 1-3 ton pyrolysis plant |
If you are interested in the 30 ton Full automatic continuous waste tyre / tire pyrolysis plant , welcome send us inquiry to get more details and prices.
